How RAR Recovery Volumes (.rev) Help Reconstruct Missing Data

If you have ever opened a backup folder and realized that one part of a multi-volume RAR set is missing, it can feel like the entire archive is gone. Then you notice several mysterious .rev files sitting next to your .rar and .partXX.rar volumes and start wondering: can these recovery volumes really rebuild what you’ve lost — and under what conditions?

Maybe an external drive failed, a cloud sync conflicted, or an old USB stick silently dropped a single file. You might still have most of your RAR volumes, plus a few .rev files, but you are afraid to experiment in case you damage the only remaining copy of important data. At the same time, you want to understand realistically whether those recovery volumes can help you or not.

This article gives a clear, high-level explanation of how RAR recovery records and .rev files work, when they can reconstruct missing data, and where their limits are. The aim is to help you make informed, safe decisions about your own archives — without risky guesswork, and always within legal and privacy-first boundaries.

---

🧭 Navigation

---

📌 TL;DR — Can .rev Files Really Rebuild Missing Data?

RAR recovery volumes (.rev) are special files that contain parity information for a set of multi-volume RAR archives. They do not duplicate your data, but they store just enough redundant information to reconstruct a limited number of missing or damaged volumes. You can think of them as “spare volumes” that can stand in for lost pieces of the set.

In practice, .rev volumes can help you if:

• You are working with a multi-volume RAR set created with recovery volumes enabled.
• You still have most of your original volumes intact, plus enough .rev files to cover the missing ones.
• The damage is limited to a small number of volumes, roughly equal to or below the number of recovery volumes created.

.rev volumes cannot help you if:

• Only a single full-volume archive exists and it has no associated recovery records or .rev files.
• You have lost more volumes than the number of .rev files available, or multiple files are severely corrupted.
• The set was created without recovery data, or the recovery volumes themselves are badly damaged.

The safest approach is to work on copies, diagnose how many volumes are missing, and check whether you have enough valid .rev files to cover the loss. From there, you can decide whether reconstruction is realistic, when to use specialized offline tools, and when to accept that the archive is mathematically unrecoverable and focus instead on prevention for future backups.

---

🔍 What RAR Recovery Volumes (.rev) Actually Are

RAR recovery volumes are parity-style files that belong to a multi-volume RAR set. When you create such a set and enable recovery volumes, WinRAR (or another RAR-compatible tool) generates extra files with the .rev extension. Each .rev file represents a unit of redundancy that can be used to reconstruct a lost or unreadable volume.

It helps to distinguish three related but different features:

• Standard RAR volumes — the .part01.rar, .part02.rar, … files that hold the actual data.
• Recovery records — optional redundant data stored inside the volumes themselves, used to repair minor corruption within a single file.
• Recovery volumes (.rev) — separate external files that can replace entire missing volumes in the set.

For a more general overview of built-in protection mechanisms, you can read about how recovery records safeguard your damaged RAR files ↗️, which explains how records and .rev files complement each other.

Conceptually, .rev files are similar to parity blocks used in RAID or parity-based backup formats: they allow the archive to survive the loss of a small number of pieces, as long as the rest of the set is intact and consistent.

---

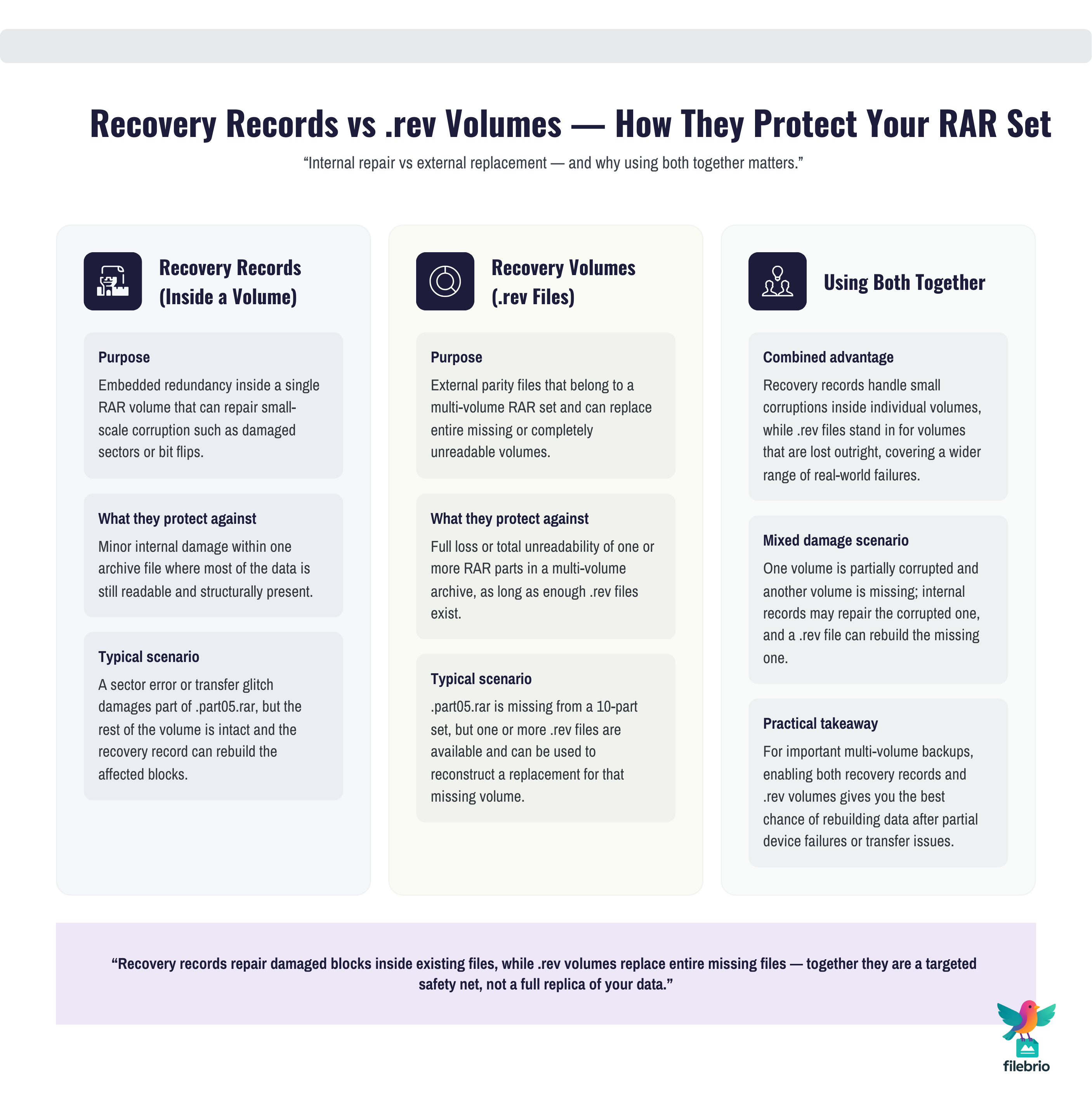

🧱 How Recovery Records and .rev Volumes Work Together

Recovery records and recovery volumes solve different parts of the same problem: keeping your data available when real-world storage is imperfect. Understanding how they interact helps you estimate your realistic chances of reconstruction.

Feature	Protects Against	Example Scenario	Outcome If Recovery Is Available
Recovery records	Small-scale corruption inside a single RAR volume	A sector error damages part of .part05.rar	Tool may repair the damaged sectors of that volume
Recovery volumes (.rev)	Complete loss or unreadability of whole volumes	.part05.rar is missing, but several .rev files exist	A valid .rev can be used to reconstruct a replacement for .part05.rar
Both combined	Mixture of minor damage and total loss	One volume is partially corrupted, another is missing	Records may fix the corruption; .rev can rebuild the missing one

In real-world backups, you often see a combination of both mechanisms. For example, a multi-volume backup stored on aging external drives may have a single unreadable volume and another that triggers read errors in certain sectors. In such a situation, both recovery records and .rev volumes help maximize your remaining chances, provided enough redundancy was configured when the set was created.

These mechanisms are most effective when the damage is discovered early and handled carefully. Safe handling principles are similar to those described for partially corrupted archives in how to stabilize your partially corrupted RAR file ↗️, where working on copies and avoiding repeated failing operations are crucial.

---

💼 All-In-One Toolkit for Working With Missing RAR Volumes

When you discover that one or more RAR volumes are missing, you usually need to answer several questions quickly:

• How many volumes are present, and which ones are gone?
• How many .rev files exist, and are they readable?
• Is the damage confined to a single drive or spread across multiple copies?

Trying to answer all of this with ad-hoc tools can lead to confusion and, in the worst case, further data loss if you overwrite partial reconstructions or repeatedly stress a failing disk. A structured, offline toolkit helps you stay organized and privacy-safe.

FileBrio RAR Master is built as an all-in-one environment for diagnosing and working with RAR and WinRAR archives, including multi-volume sets with recovery volumes. Instead of juggling multiple unrelated utilities, you can:

• List which volumes and .rev files are present, readable, or clearly missing.
• Run non-destructive diagnostics on copies of your archives first.
• Plan whether reconstruction attempts are realistic before spending time and effort.

Your Challenge	Risk of Random Tools	Benefit of an Integrated Toolkit
Work out if you have enough .rev files	Miscounting or forgetting which volumes are missing	Clear view of existing volumes vs recovery capacity
Assess archive integrity	Interpreting generic errors as “all is lost”	Format-aware diagnostics and health indicators
Keep sensitive data private	Uploading backups to unknown online services	100% local, offline processing under your control

For a broader overview of what the toolkit can handle — including encryption, damaged archives, and multi-volume layouts — you can review FileBrio RAR Master features ↗️ before deciding how it fits into your recovery strategy.

________________________

________________________

---

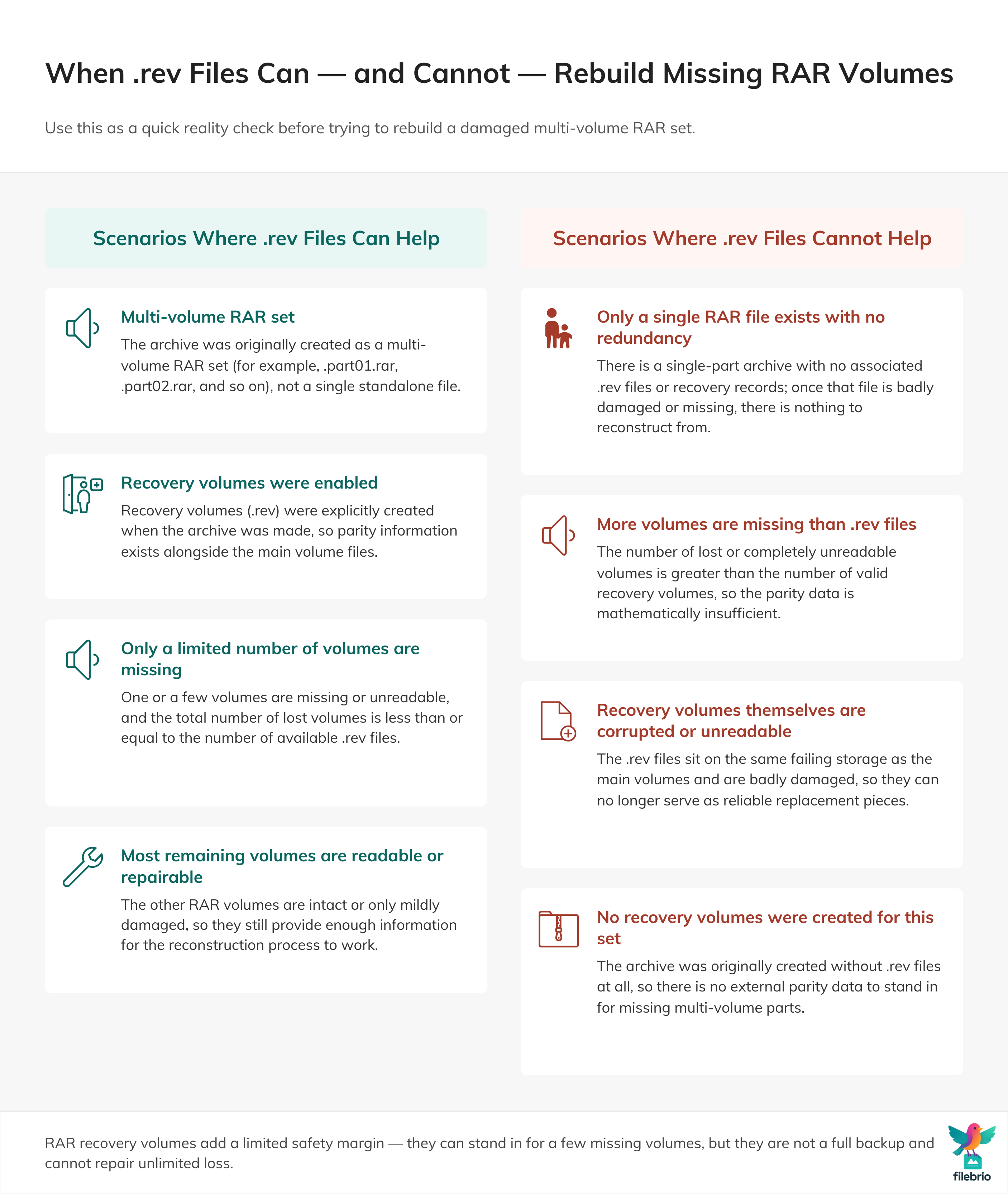

🧪 When .rev Volumes Can Successfully Rebuild Missing Data

Recovery volumes are powerful, but they are not magic. To understand when they actually work, you need to look at the numbers and the state of your storage, not just the existence of .rev files.

In broad terms, .rev volumes can reconstruct missing data when:

• The archive was originally created as a multi-volume set (for example, many .partXX.rar files) with recovery volumes enabled.
• You have at least N valid .rev files for up to N missing or unreadable volumes.
• Most of the remaining volumes are in good or repairable condition (mild corruption can sometimes be handled with internal recovery records).

Consider a simple scenario: a backup consists of 10 volumes (part1 through part10) plus 3 recovery volumes (.rev). If you lose one volume completely, you still have:

• 9 original volumes, and
• 3 recovery volumes.

As long as the 9 remaining volumes and at least 1 .rev are still readable, the recovery process can often reconstruct the missing piece. If two volumes are missing, you need at least 2 healthy .rev files, and so on. Once the number of missing volumes exceeds the number of available .rev files, reconstruction becomes mathematically impossible.

When multiple volumes are missing or broken, it’s also essential to understand how that interacts with the internal structure of multi-volume archives. High-level guidance like how to rebuild missing sections of your multi-volume RAR set ↗️ can help you think in terms of sets and gaps instead of individual files.

---

⚠️ Limits of .rev Volumes: When Recovery Will Not Work

Even well-designed redundancy has hard limits. Understanding them early prevents you from wasting time on hopeless attempts and encourages you to focus on smarter prevention for future backups.

1. Too many missing or damaged volumes
If you have lost more volumes than the number of .rev files, no recovery engine can fill those gaps. Parity-based reconstruction depends on having enough independent pieces of information to rebuild the missing ones. Once that threshold is exceeded, the archive becomes unrecoverable, regardless of software or hardware.

2. No recovery volumes were created in the first place
Sometimes users assume that .rev files “exist somewhere,” only to discover that they never enabled recovery volumes when the archive was created. In that case, there is no parity data to work with. At best, internal recovery records may fix small corruptions in individual volumes, but complete loss of a volume usually means permanent data loss.

3. Recovery volumes themselves are corrupted
If the .rev files sit on the same failing disk as your original volumes, they may also be damaged. In such a case, you may be dealing with multiple layers of partial corruption, each reducing the chance that reconstruction will succeed.

4. Encryption and headers do not change the math
If your archive is strongly encrypted and you have forgotten the password, recovery volumes cannot help you bypass encryption; they only help restore missing encrypted data. Likewise, if headers are fully encrypted, you may see fewer diagnostic clues, but the underlying limits described in resources like encrypted header warning ↗️ still apply.

5. Relying on wishful thinking instead of feasibility analysis
Once you understand that too much data is missing or that redundancy was never enabled, it is wise to stop and look at the situation realistically. Articles that discuss scenarios where archives become mathematically unrecoverable — such as why strong encryption blocks access to your RAR file ↗️ — can help you recognize when it is time to focus on prevention rather than repeated, risky attempts on the same damaged set.

---

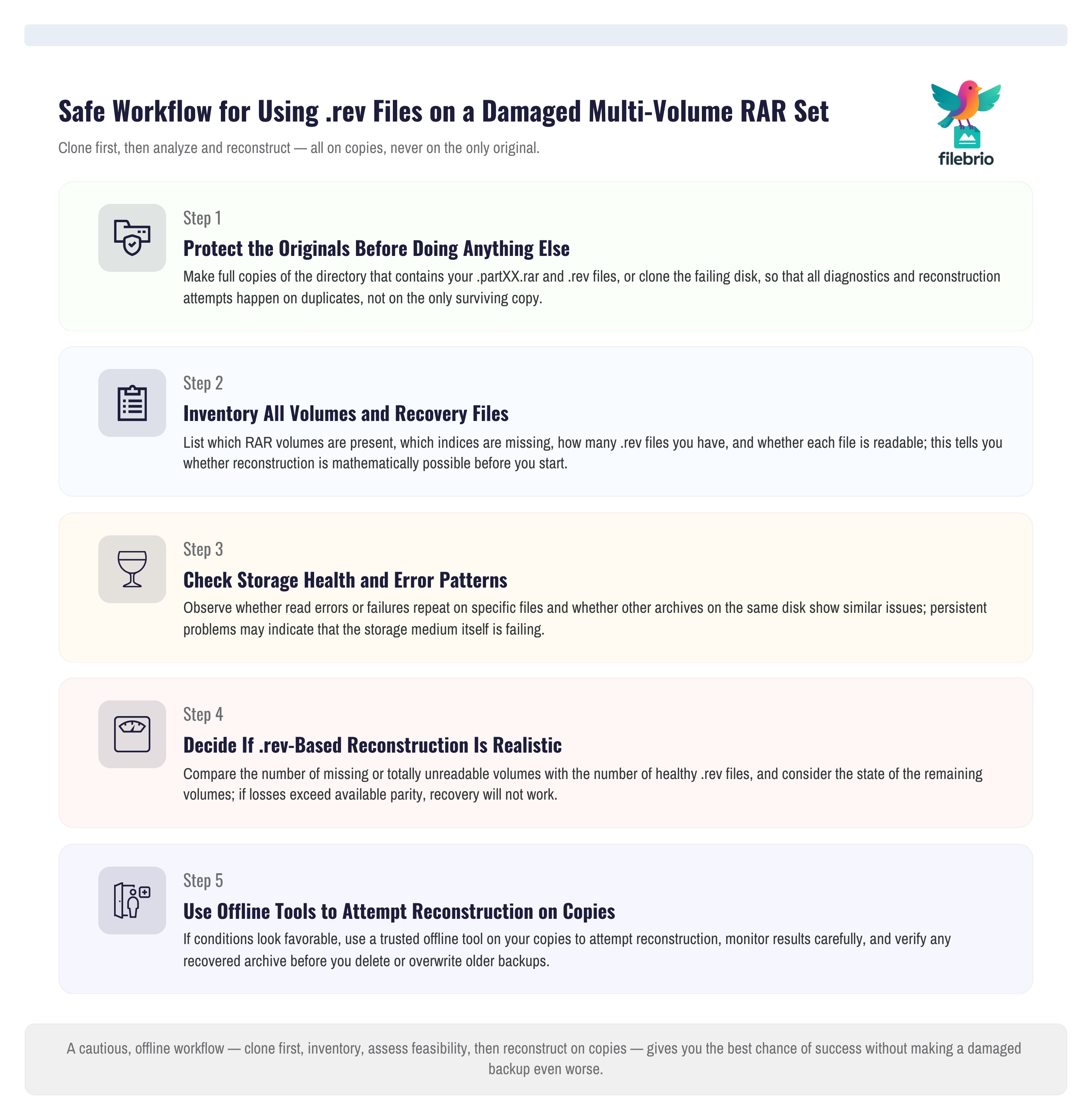

🛡️ Safer Diagnostic Steps Before Using .rev Volumes

Before you attempt any reconstruction with .rev files, you should first make sure that your diagnostic process does not make things worse. That means avoiding unnecessary writes to failing media and working from controlled copies instead of the only surviving original.

Safe, high-level steps include:

• 1. Clone or copy first, analyze later. If you suspect a failing disk, clone it or make full copies of the relevant directory tree before running repeated tests. Guidance like ways to prevent further harm to your corrupted RAR data ↗️ applies equally to multi-volume sets with .rev files.
• 2. Inventory all volumes and .rev files. Create a simple list of which volume indices you have (for example, 1–10 with 5 missing) and how many .rev files are present and readable.
• 3. Note all error messages and their context. Whether you are using WinRAR or another tool, record which volumes fail, what messages appear, and whether failures are repeatable or intermittent.
• 4. Check storage health. If the same errors pop up across multiple archives on the same device, the underlying storage may be failing, and recovering data from that medium should take priority.

Longer-term, diagnostics should be part of a broader approach to archive safety. Recommendations like ways to prevent losing your RAR data on storage devices ↗️ and how to strengthen RAR archive security while preserving future access ↗️ encourage you to think about redundancy, storage diversity, and secure password handling as one connected strategy.

---

🛠️ Secure Offline Solution for Complex RAR Repair and Reconstruction

Real incidents rarely match textbook examples: you might have one missing volume, one badly corrupted volume, and .rev files of uncertain quality — all stored across different drives, some of which are aging. In such situations, you need more than a basic archive opener. You need a structured, offline tool that can help you understand what is realistically possible without exposing sensitive archives to third parties.

FileBrio RAR Master is designed with exactly this kind of scenario in mind. Instead of asking you to upload confidential archives to web services, it lets you work locally on Windows, combining diagnostics and recovery-related capabilities in one place.

• Archive-centric view. See a clear picture of which volumes, .rev files, and metadata are present, helping you decide whether reconstruction is viable.
• Corruption-aware repair options. Integrates with features focused on damaged archives, complementing functionality similar in spirit to repair damaged RAR archives ↗️.
• Privacy-first workflow. All operations happen on your own machines, reducing compliance and confidentiality concerns.

When you decide to standardize on a single, offline toolkit for your team or organization, it becomes easier to document processes, train colleagues, and ensure consistent handling of critical backups. For users ready to try this approach, the official installer is available on the FileBrio Office Suite download page ↗️, where RAR Master is offered as part of a broader toolbox.

________________________

________________________

---

📦 Best Practices to Protect Future Archives and Recovery Paths

Whatever happens with your current damaged or incomplete set, you can use the experience to design stronger, more resilient backup strategies for the future. Recovery volumes and records are most effective when combined with healthy storage habits and good planning.

1. Enable recovery options proactively
When creating important multi-volume archives, consider enabling both recovery records and recovery volumes, especially for long-term backups or offsite storage. This improves your chances of surviving partial damage without keeping multiple full copies everywhere.

2. Store volumes and .rev files redundantly
It is wise to spread your archive set across more than one location or medium. For example, you might keep a copy on local storage and another on a well-managed network share or offline disk. That way, a single device failure does not take out both volume data and recovery data.

3. Document your archive layout and passwords
Notes about how many volumes exist, how many recovery volumes were created, and what naming scheme you used may seem obvious now but will be invaluable years later. A similar mindset to that in how to maintain long-term access to encrypted RAR archives (teams & enterprises) ↗️ can help you organize this information at both personal and organizational levels.

4. Periodically test critical backups
For high-value archival sets, plan occasional test extractions or integrity checks on fresh hardware. This lets you catch silent bit rot or small-scale corruption early, while recovery records and .rev volumes still have the best chance to help.

5. Treat recovery volumes as part of your security model
Redundancy does not weaken encryption — .rev files protect availability, not secrecy. Even so, treat all archive components (volumes, recovery records, and .rev files) as sensitive assets that must be stored according to your security policies.

---

📜 Legal Reminder and Responsible Use

RAR recovery volumes and other redundancy features exist to help you protect your own data or data you are formally responsible for. Using them responsibly means staying within clear legal and ethical boundaries.

• Work only with archives you own or that your organization has explicitly authorized you to handle.
• Document what you do: which copies you used, which tools you tested, and what outcomes you observed.
• In regulated environments, align your actions with internal policies and, where needed, consult legal or compliance teams.
• Avoid sending sensitive archives to unknown online services; keep recovery activities inside your own security perimeter whenever possible.

For official guidance, licensing terms, and support options around responsible use of FileBrio tools, including RAR Master, refer to the dedicated page for software compliance info ↗️, which centralizes support contacts and legal notes.

---
