How RAR recovery records and .rev volumes protect and restore damaged archives
How recovery records and .rev files work to safeguard and rebuild RAR archives

RAR Recovery Records and .rev Volumes: How They Help Protect and Restore Data

When a RAR archive becomes partially corrupted, incomplete, or fails during transfer, the difference between full recovery and permanent data loss often comes down to whether recovery records or .rev volumes were created. Many users know these features exist but are unsure how they work, how much protection they offer, and what limits they have. This guide explains them in practical, high-level terms so you can understand what’s realistically possible before taking action.

🧭 Navigation

Important

The information provided in this article applies exclusively to RAR / WinRAR archives for which you have full, demonstrable ownership or properly documented authorization. If you are not the rightful owner of the data, do not directly control it, or cannot clearly prove permission to access it, you must stop immediately. Attempting to access, recover, or modify data without explicit authorization may violate criminal law, civil statutes, corporate compliance requirements, and privacy regulations in many jurisdictions. You alone are responsible for ensuring that your actions are lawful and properly permitted before proceeding.

⚡ TL;DR — Recovery Records and .rev Volumes Explained

Recovery records and .rev volumes are optional RAR features that add redundancy, giving your archives a safety margin against small corruption or missing parts. Recovery records embed parity-like data inside a single archive, allowing repair of minor damage caused by failing USB drives, unstable transfers, or cloud upload corruption. .rev volumes, by contrast, are external recovery files created for multi-volume archives; they can reconstruct entire missing volumes rather than just repair small internal errors. Together, they improve resilience but do not bypass encryption, override passwords, or fix severe damage that exceeds the redundancy you originally added.

Diagnostics depend heavily on whether these features are present. Tools that recognize recovery records and .rev volumes can quickly show whether repair is even feasible, helping you avoid unnecessary extraction attempts or unsafe online tools. A safe workflow keeps all checks offline, inspects metadata first, and evaluates whether damage falls within the recovery limits. Used correctly on archives you legitimately own, recovery features can save data in scenarios like partial downloads, damaged removable media, or corrupted cloud transfers. They are not magic, but they can make the difference between a recoverable archive and permanent loss—especially when paired with local, privacy-first diagnostics like those in FileBrio RAR Master.

🧩 What Are RAR Recovery Records?

RAR recovery records are special data blocks embedded inside an archive. Their purpose is to repair small forms of corruption—bit flips, minor structural damage, damaged sectors on storage media, or issues caused by unstable transfers. They function similarly to parity data in other error-correcting systems.

When a file includes recovery records:

  • The archive can survive certain types of low-level corruption.
  • You may be able to repair it even if parts of the file were modified or lost during storage or transfer.
  • Tools with RAR repair support can use these embedded blocks to reconstruct damaged data.

This feature is especially useful when storing archives on:

  • USB drives prone to wear or unsafe removal
  • Large HDDs with developing bad sectors
  • Cloud services that occasionally mangle binary uploads
  • Email systems that apply transformations or corrupt attachments

Recovery records appear in both older RAR4 and modern RAR5 archives, though their implementation details differ. To deepen your understanding of why corruption happens in the first place, you may want to review Why RAR Archives Become Corrupted: Common Causes and How to Prevent Them ↗️.

⚙️ How Recovery Records Work Internally

At a high level, recovery records operate as parity-based redundancy. They contain mathematical checksums and data fragments that allow reconstruction of small damaged portions of the archive. While the internal mechanics are technical, three core ideas explain the process clearly:

1. They Store Redundant Slices of Your Archive

Recovery records don’t duplicate entire files but store encoded fragments that can rebuild damaged blocks even if parts of the original data are missing.

2. They Have a Size You Control at Creation Time

When creating a RAR file, you choose how much space the recovery data should take (e.g., 3%, 5%, 10%). Higher percentages allow repair of larger corruptions but increase file size.

3. They Can Restore Only Partial Damage

Recovery records cannot fix an entire file if most of it is gone. They are designed for incremental issues, not catastrophic loss.

Feature Recovery Records .rev Volumes
Works with single-part archives? Yes No
Repairs small corruption? Yes Not their purpose
Rebuilds missing archive parts? No Yes
Requires special creation? Yes, added at creation time Yes, .rev files generated separately

📦 What .rev Volumes Are and How They Differ

.rev volumes are recovery volumes created for multi-part RAR archives. Instead of repairing corruption within a file, they replace an entire missing part. This is particularly useful when storing large archives split into many parts—losing even one piece can break the entire set.

A .rev volume lets you:

  • Reconstruct one or more missing segments of a multi-volume archive.
  • Recover from incomplete downloads.
  • Repair damage caused by corrupted removable media.
  • Restore missing parts due to accidental deletion.

The more .rev volumes you have, the more missing or damaged parts you can reconstruct. For instance:

  • 1 .rev file → replace 1 missing volume
  • 3 .rev files → replace up to 3 missing volumes

If you want a deeper look at how multi-volume sets behave in general, you can explore Understanding Multi-Volume RAR Archives: Password Behavior and Repair Options ↗️.

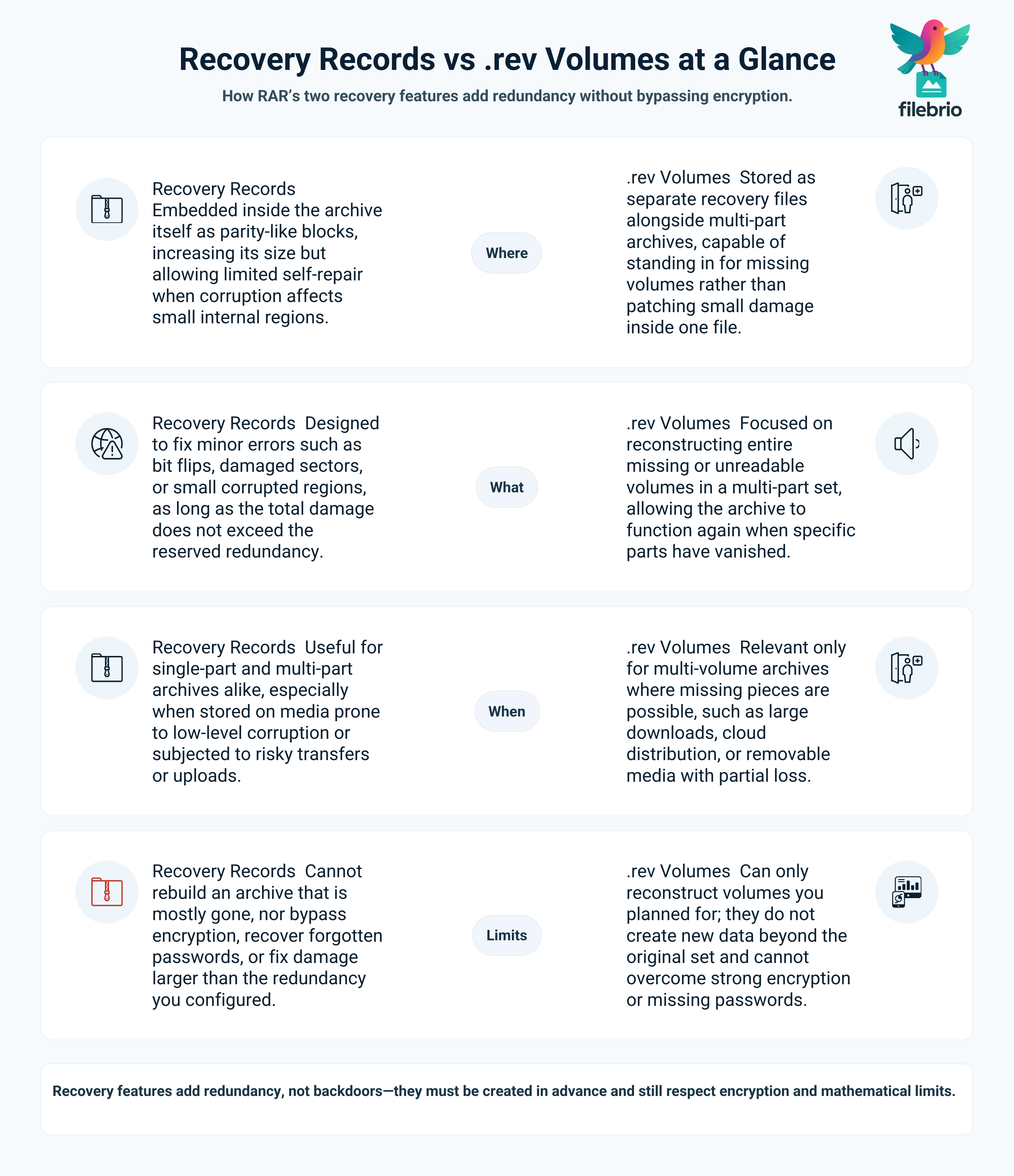

Comparison table showing how embedded recovery records and external .rev volumes differ in where redundancy is stored, what they repair, when they apply, and their limits.
Recovery records and .rev volumes both add redundancy, but in different ways: one repairs small corruption inside files, the other replaces missing multi-part volumes.

🛑 Limits of Recovery Records and .rev Volumes

Despite being powerful, these features are not magic. They help only under specific conditions and within mathematical boundaries.

1. They Cannot Overcome Strong Encryption

If your RAR archive is encrypted and you no longer remember the password, recovery records and .rev volumes cannot bypass encryption or reveal filenames. For high-level guidance on evaluating access options, see How to Evaluate Safe Options for Regaining Access to a RAR Archive You Own ↗️.

2. They Cannot Fix Severe Corruption Without Enough Redundancy

You must have created enough recovery data in advance. If the damage is larger than the available redundancy, repair is mathematically impossible.

3. They Cannot Rebuild Files in Wrong Order

.rev volumes reconstruct specific missing parts, not arbitrary content. They preserve the original structure—no more, no less.

4. They Cannot Repair Completely Missing Single-Part Archives

If you only have one RAR file and it is entirely gone, recovery records cannot regenerate it from scratch.

🧰 All-In-One Solution for Handling Recovery Records & Volumes

Users often struggle to determine whether their archives actually contain recovery records or .rev volumes, or whether these features can help with their specific problem. Misinterpreting error messages can cause users to waste time or take risky actions such as re-downloading files repeatedly or trying unsafe online tools.

FileBrio RAR Master in the FileBrio Office Suite addresses these gaps by offering a local, privacy-first environment for diagnostics.

Problem Risk How FileBrio Helps
Unsure whether recovery data exists Assuming damage is unrecoverable Automatically detects recovery records & .rev volumes
Archive shows errors during extraction Risking further corruption Runs safe offline diagnostics before extraction
Large multi-volume archives missing pieces Manually guessing structure or redownloading Identifies which parts can be reconstructed using .rev

For a complete view of the application’s capabilities, see FileBrio RAR Master features ↗️.

________________________

FileBrio RAR Master — part of the FileBrio Office Suite — is a privacy-first, offline Windows toolkit for diagnosing and safely regaining access to your own password-protected RAR / WinRAR archives.

  • Local processing only — nothing leaves your PC.
  • Smart diagnostics to separate password issues from corruption.
  • Owner-verified recovery workflows designed strictly for legitimate use.

🔍 View Full Features Overview

Reminder: FileBrio RAR Master may be used only with archives you own or are explicitly authorized to access. It performs all analysis and recovery operations locally on your device, without uploading data anywhere.

________________________

🧪 Practical Scenarios Where These Features Save Data

Scenario 1: Damaged USB Drive

A large RAR archive stored on a failing USB stick may contain damaged blocks. If recovery records were included, the archive can sometimes be restored even when normal extraction fails. Without them, corruption may be permanent.

Scenario 2: Missing Multi-Part Volumes After Download

Multi-volume archives downloaded from cloud storage or corporate distribution platforms may have incomplete parts. .rev volumes can rebuild missing segments and restore the archive without having to download everything again.

Scenario 3: Corrupted Cloud Upload

When uploading a large archive, cloud platforms sometimes apply transformation or compression that damages binary data. Recovery records can repair this damage as long as the corruption falls within the available redundancy.

Scenario 4: Inconsistent Archive Metadata

Archives with inconsistent header metadata may appear broken even though most content is intact. Tools with recovery-aware diagnostics can determine whether repair is feasible before you attempt extraction.

🛠️ Safe Local Diagnostics for Damaged RAR Archives

Before attempting repairs or reconstruction, it is important to diagnose the situation safely. Uploading corrupted or encrypted archives to online tools is risky and often ineffective. Local, offline analysis is the safer alternative.

Good diagnostic practices include:

If data loss is suspected, you may also benefit from reading How to Handle Damaged or Partially Corrupted RAR Archives Without Losing More Data ↗️, which outlines careful steps to avoid further problems.

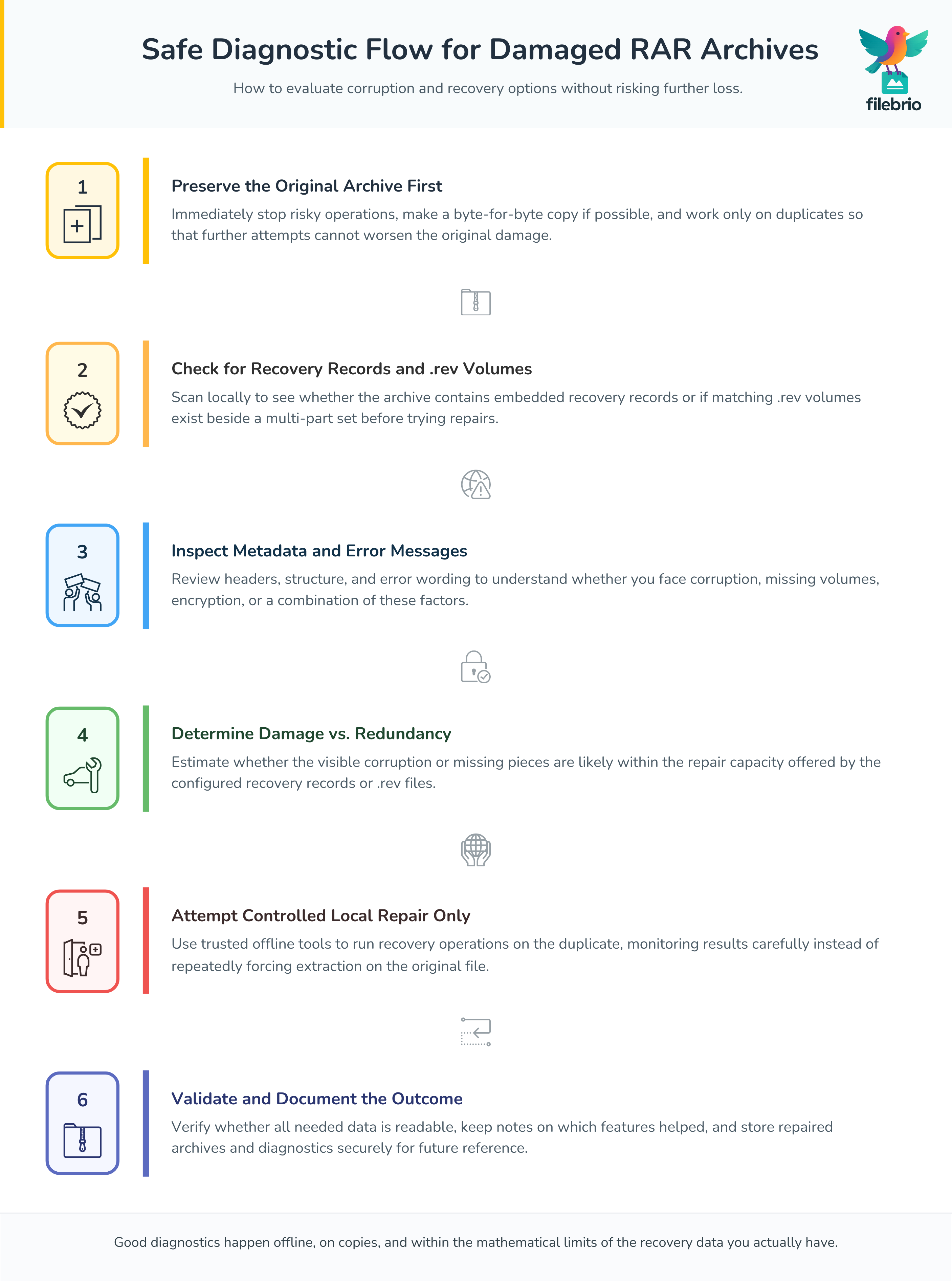

Vertical six-step flowchart showing a safe diagnostic process for damaged RAR archives, from preserving the original to using recovery data and validating results offline.
A cautious, local-first diagnostic flow helps you use recovery records and .rev volumes safely without increasing data loss.

🛡️ How to Protect Your Archives Using Recovery Features

1. Add Recovery Records to Sensitive Archives

For long-term or critical storage, even a small percentage of recovery records significantly increases resilience.

2. Create .rev Volumes for Multi-Part Archives

When distributing large archives in multiple parts, adding .rev files can prevent failure if recipients miss or corrupt one or more pieces.

3. Store Backups on Multiple Media

Even with recovery records, catastrophic media failure can exceed redundancy. Store redundant copies on independent devices.

4. Keep Basic Documentation

When filename encryption or structural protection is used, maintain external notes describing archive contents to avoid confusion in the future.

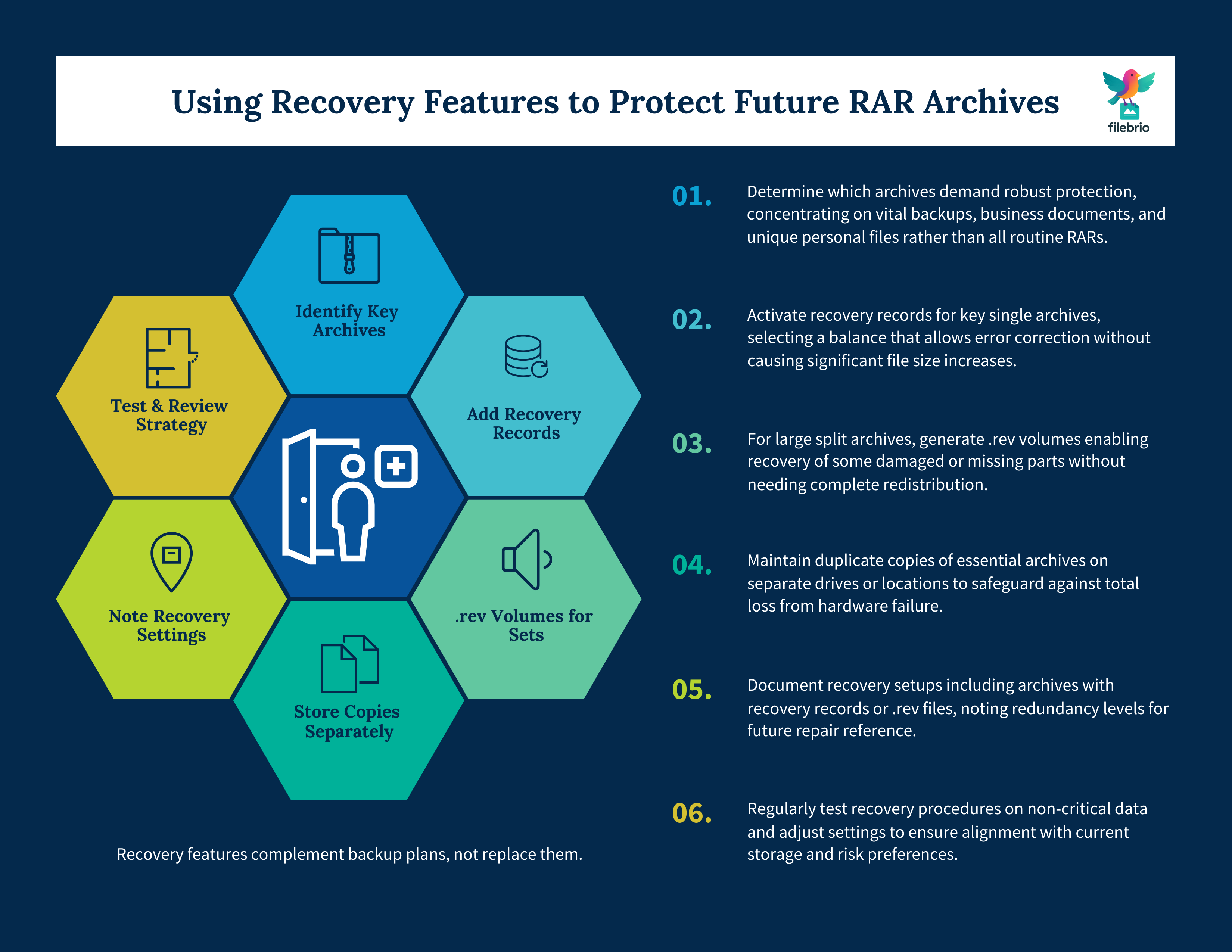

Two-row workflow with six steps showing how to identify critical RAR archives, add recovery records, create .rev volumes, use independent media, document settings, and periodically test the strategy.
Planning recovery records, .rev volumes, and backups together gives your important RAR archives a realistic safety margin against corruption and loss.

🔐 Secure Offline Solution for Recovery-Aware RAR Analysis

Because recovery records and .rev volumes provide structural resilience, you need tools that understand those structures without sacrificing privacy. FileBrio RAR Master operates entirely offline and supports:

  • Recovery record detection
  • .rev volume analysis
  • Metadata inspection
  • Local repair operations
  • Protected file access workflows

To compare safe offline workflows with riskier online approaches, reviewing FileBrio RAR Master: Online vs Offline Comparison ↗️ can help you make informed decisions.

You can obtain FileBrio tools safely through the official distribution page at FileBrio Office Suite: Download Page ↗️.

________________________

FileBrio RAR Master — a secure, offline Windows toolkit for regaining access to your own password-protected RAR / WinRAR archives while keeping all data strictly on your device.

  • Offline-only processing — never uploads your archives.
  • Smart issue detection — password vs corruption.
  • Fast recovery workflow optimized for legitimate ownership.

⬇️ Download FileBrio RAR Master

Reminder: FileBrio RAR Master is intended only for archives you own or are explicitly authorized to access. All operations run locally on your PC.

________________________

⚖️ Legal Reminder

This article is provided for general informational and educational purposes only. Any examples, scenarios, or references to password recovery, archive security, or related tools (including FileBrio RAR Master or similar software) are intended solely to help you better understand how to protect and manage your own data.

You may only apply any techniques, workflows, or tools described here to files and archives that you fully own or are explicitly and verifiably authorized to access. Attempting to bypass, remove, or recover passwords for third-party data without clear permission may violate criminal law, civil law, or internal company policies in your jurisdiction.

Nothing in this article constitutes legal advice. Laws and regulations differ between countries and organizations, and you are solely responsible for ensuring that your actions comply with all applicable legislation, contracts, and internal policies. If you are unsure whether a particular action is lawful or permitted, consult a qualified legal professional before proceeding.
